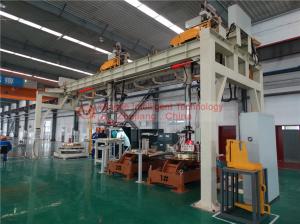

Copper coil multi-roll welding connection stacking line
Product Description:
The copper coil multi-roll welding connection stacking wire type adapts to various narrow metal coil welding stacks and has been used by many metal coil manufacturers at home and abroad. In accordance with the principle of “high quality, high efficiency, low consumption and long life”, advanced, mature, reliable, economical and practical technologies and equipment are adopted.
The equipment level can reach the domestic leading level and the international advanced level.
Energy consumption and pollution are strictly implemented in accordance with national standards and industry standards.
For products of different varieties and specifications, the device has manual settings, automatic settings and automatic adjustment of packaging parameters.
The automatic line type has simple process, elegant design, reasonable and compact layout, advanced technology, continuous and efficient operation, high safety, low comprehensive energy consumption, convenient operation and maintenance, and low operating cost.
Quality control: The design within its working range ensures that the quality meets the requirements.
The modular unit is safe, reliable and economical, and can be customized for each module.
Copper tape size requirements:
Copper tape outer diameter: 600 ~ 1600mm
Copper tape inner diameter: 250mm, 300 mm, 400mm
Copper strip width: 8 ~ 100mm
Single piece copper belt weight: ≦1000kg
Stacking height: ≦800mm (without bottom tray)
Stacking weight: 5000kg
Pallet height: 120mm
Main equipment:
| No. |
Item Name |
Quantity |
Remarks |
| 1 |
Electric hoist |
1 |
Optional |
| 2 |
Flip machine (1) |
1 |
|
| 3 |
Flip machine (2) |
1 |
|
| 4 |
Vacuum chuck and moving mechanism |
1/2 |
Details in packaging specifications |
| 5 |
Transfer platform |
1 |
|
| 6 |
Rotary table |
1 |
|
| 7 |
welder |
1 |
|
| 8 |
PLC total control system |
1 |
|
