L-shaped vertical metal coil (steel coil, copper coil, aluminum coil, etc.) winding packaging automatic line
Product Description:
L300-850 vertical metal coil winding packaging automatic line, with gantry packaging machine as the main body, adapt to various metal coil packaging with a width of more than 30mm, has served hundreds of metal coil manufacturers at home and abroad. In accordance with the principle of “high quality, high efficiency, low consumption and long life”, advanced, mature, reliable, economical and practical technologies and equipment are adopted.
The equipment level can reach the domestic leading level and the international advanced level.
Energy consumption and pollution are strictly implemented in accordance with national standards and industry standards.
For products of different varieties and specifications, the device has manual settings, automatic settings and automatic adjustment of packaging parameters.
The automatic line type has simple process, elegant design, reasonable and compact layout, advanced technology, continuous and efficient operation, high safety, low comprehensive energy consumption, convenient operation and maintenance, and low operating cost.
Quality control: The design within its working range ensures that the quality meets the requirements.
The modular unit is safe, reliable and economical, and can be customized for each module.
The process flow is as follows:

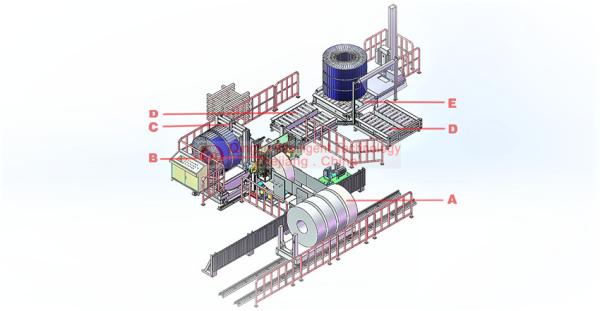

After slitting, the steel coil is hoisted by the whole vehicle to the feeding trolley, and then the feeding trolley passes the transmission, and is conveyed to the L-type gantry packaging machine from the distance of the set roller gap, and the packaging is completed. Afterwards, the damper is conveyed to the turning machine through the slope, and the steel coil is turned over and then packed by the conveying roller to the material to be fed.
L-type vertical metal coil winding packaging automatic line packaging range (see attached table):
| Model | Outer diameter(mm) | Inner diameter(mm) | Narrow roll width(mm) | Packing speed (m/min) |
| L200 | 600—900 | 300-508 | 30-200 | 4.5 |
| L300 | 650-1100 | 300-610 | 30-300 | 4.5 |
| L400 | 750-1500 | 300-610 | 30-400 | 4.5 |
| L500 | 750-1500 | 300-610 | 30-500 | 4.5 |
| L600 | 900-1600 | 300-610 | 100-600 | 3.8 |
| L800 | 900-1600 | 300-610 | 150-800 | 3.8 |
Automatic line type main equipment:
| No. | Item Name | Quantity | Remarks |
| 1 | Rewinding system | 1 | Optional |
| 2 | Feeding steel roll trolley or C-hook lifting | 1 | |
| 3 | Roller guardrail system | 1 | |
| 4 | Electronic weighing power system | 1 | Optional |
| 5 | L-type vertical metal coil automatic wrapping machine | 1 | Details in packaging specifications |
| 6 | Slope damping transmission | 1 | |

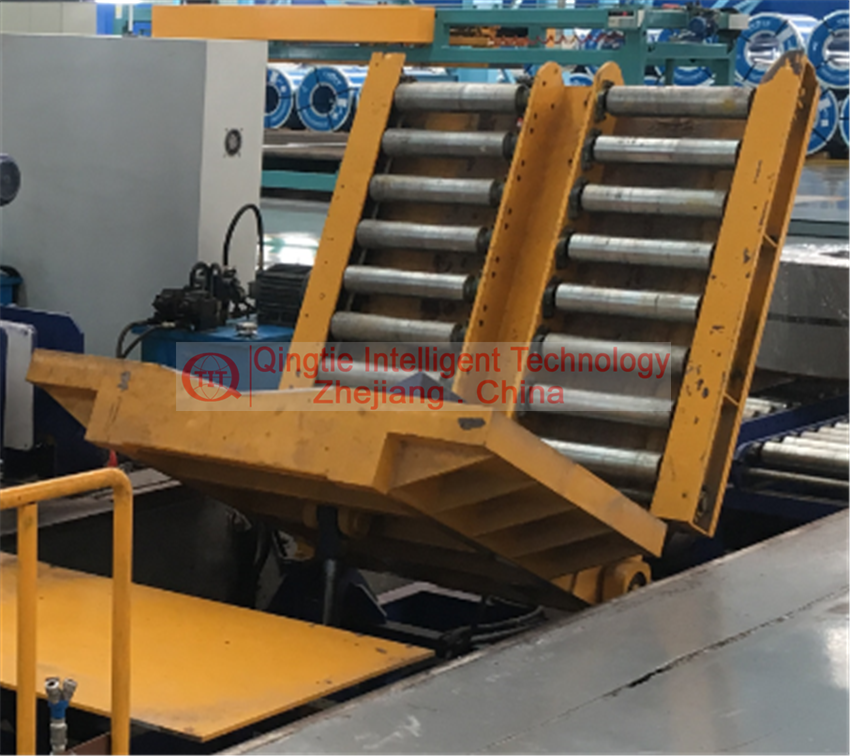

| 7 | Mobile power roller turning machine | 1 | |
| 8 | Transitional power roller | 1 | |
| 9 | Automatic wrap machine | 1 | Optional |
| 10 | Towed power roller | 1 | |
| 11 | PLC total control system | 1 | |
