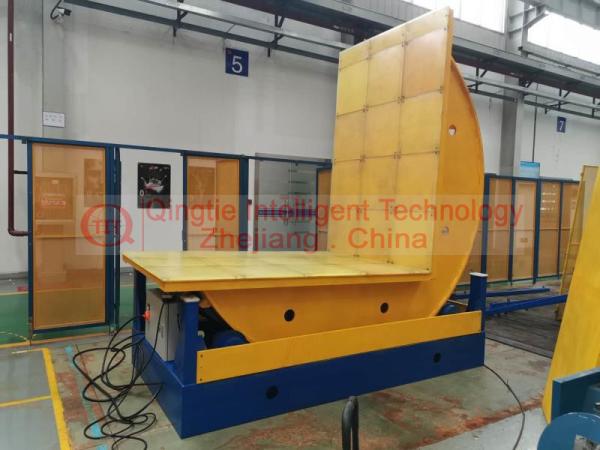

90 Degree Steel Coil Upender , High Safety Turnover Press Machine
Steel Coil Upender Application
Steel Coil Upender with hydraulic control, continuous production, reduce the labor intensity of workers in the operation more secure and reliable, stable and accurate. Electrical operation screen with emergency stop (total stop) rotary switch, can be quickly in case of emergency braking to ensure safety
Steel Coil Upender main features:
1. Drive with double row chain.
2. Adopt super worm gear reducer.
3. The four-wheel mechanism with reasonable structure makes the turning stable.
4. When turning over, use double protection switch device (mechanical limit switch, electric limit switch limit) to make the position changer and interlock with the safety protection safety door.
5. When the material is up and down, the table top is stable.
6. After the flip is completed, the flip will end automatically.
7. Use the emergency stop button to quickly stop the flip in an emergency.
8, can be stopped at any position during the flipping process.
Steel Coil Upender main parameters:
| Name: |
Steel Coil Upender |
Motor Reducer: |
5.5KW (domestic) |
| Degree: |
90 Degree |
Machine Weight:: |
About 4T |
| Power Supply:: |
380V, Three-phase Five-wire Main Configuration |
Advantage: |
High Safety |
1. Basic equipment data:
Motor reducer: 5.5KW (domestic)
Switches, knobs, contactors: Schneider (matching the motor box)
Bearing: HRB
Machine weight: about 4T
Power supply: 380V, three-phase five-wire main configuration
2. Equipment spraying:
Host base: sky blue
The warning part is orange (flip body)
Steel Coil Upender installation
The Steel Coil Upender is fixed to the ground with suitable expansion bolts to prevent displacement of the equipment.
Five, other
Equip the equipment instruction manual (including daily maintenance requirements) and safety operation instructions.
