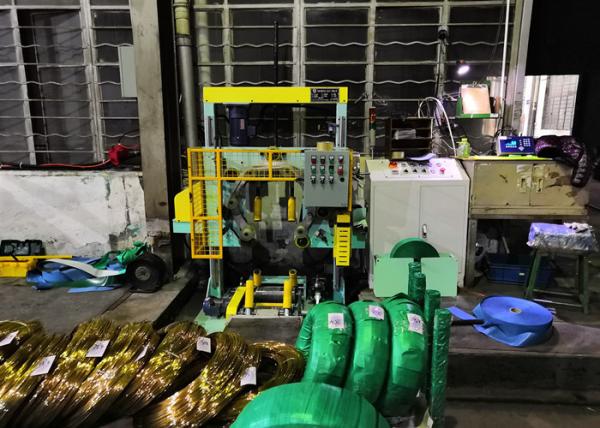

High Speed Coil Wrapping Machine For Bearings / Steel Belts / Copper Belts
Coil Wrapping Machine Specifics
| Product width |
≤200mm |
| Product OD |
≤800mm |
| Product ID |
≥200mm |
| Thickness |
≤200mm |
| Wrapping material |
Tretch Film / Compound Paper Belt / Woven Belt Etc. |
| labelling device |
Optional |
| End cut type |
Manual Cut / Automatic Cut / Optional |
Coil Wrapping Machine Applications:
Coil Wrapping Machine is specially used for all kinds of ring items (such as bearings, steel belts, copper belts, aluminum belts, steel wires, steel rings, rubber and plastic coils, copper coils, bellows, welding wire, cables). , a wire, a tire, etc., designed and manufactured by a novel heart-wound packaging machine, which is convenient for transportation and storage, and improves the appearance quality of the product. The object to be packaged is relatively sealed to provide good protection, fixation and decoration.
Competitive Advantages:
Coil Wrapping Machine has the advantages that the manual winding package is completely replaced, the packaging speed is fast, the operation is convenient, the production efficiency is greatly improved, and the labor intensity of the worker is reduced. It can be packaged in multi-layer packaging paper, which can protect against dust and moisture and protect the surface of the product. It is a packaging device that is very simple to operate and functional. It ensures the safety of production, the packaging effect is neat, beautiful, and the tension is strong, which improves the appearance quality. Increased product added value, reflecting the corporate image.
Main Performances:
1. Simple operation, random display of automatic working status, with the function of displaying fault content.
2. Controlled by PLC programmable controller.
3. Touch type man-machine interface display: input the outer diameter, inner diameter and width of the product, and the microcomputer system automatically sets the winding package length and number of turns.
4. Humanized structure, standardized, modular design, to ensure safe use, easy operation, stable performance, easy maintenance.
5. Redundant design, large adjustment space, the main board can be moved on the board to accommodate different inner and outer diameter products.
6. Stable tension control mechanism.
7. The slip ring is integrally cast, the texture is even and firm, the precision is reset, and the slow start and slow stop, the packaging ends, and the automatic positioning.
We specialize in designing ring packing machines of various specifications according to the characteristics of our customers' products.
